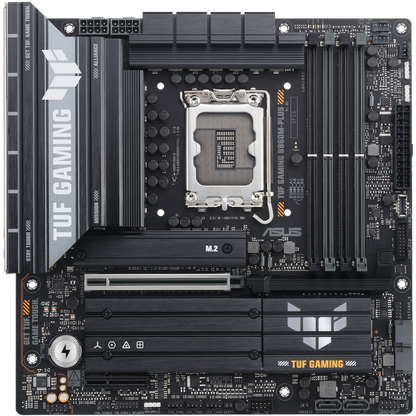

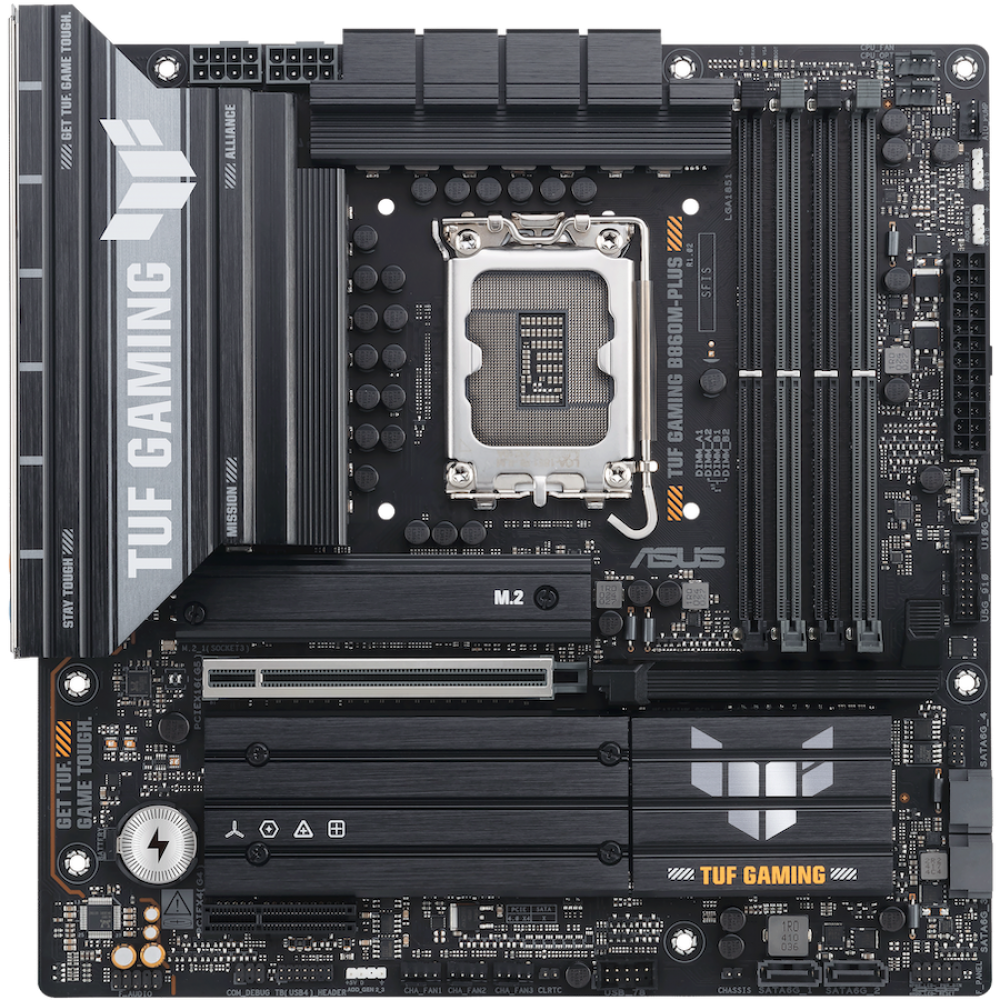

ASUS TUF GAMING B860M PLUS Micro ATX Motherboard for Intel Core Ultra Processors Black
Free shipping from €99
Larger quantities? Call us: +48 453 085 070
Couldn't load pickup availability
- Fast shipping
- 14 days to return
- Expert assistance
- Secure payments
Product description
The ASUS TUF GAMING B860M PLUS motherboard is an excellent choice for gaming enthusiasts seeking performance and reliability. With the Intel B860 chipset and support for Intel Core Ultra processors, you can enjoy exceptional computing power that can handle even the most demanding applications. Four DIMM memory slots allow for flexible memory management, with a maximum capacity of up to 192 GB and speeds of 8800 MT/s, ensuring fast data access.
Integrated PCI Express connectors and efficient USB ports make this motherboard ideal for building a modern gaming computer. Additionally, the 7.1 sound card and 2.5 Gbps LAN network speed guarantee excellent sound quality and fast connectivity, which is crucial nowadays. By investing in the ASUS TUF GAMING B860M PLUS, you choose a product designed for performance and durability that will support your gaming experiences for years to come.
- supports Intel Core Ultra processors
- maximum memory capacity 192 GB
- two M.2 connectors and four SATA III connectors
Warranty and support
The product is covered by the official manufacturer's warranty valid throughout the European Union. The warranty period is 24 months (unless stated otherwise in the product description).
In case of technical problems, we offer full after-sales support. You can contact us by email or through the contact form – we will help with diagnosis, submitting a complaint, and further steps. Complaints are handled efficiently and in accordance with applicable consumer law. We ensure that the process is quick and hassle-free.
If you have any questions, we are at your disposal.
Technical specifications
Brand: ASUS
Model: TUF GAMING B860M PLUS
Chipset: Intel B860
Processor socket: Socket 1851
Supported processor: Intel Core Ultra Processors
Memory type: DDR5 SDRAM
Memory speed: 8800 MT/s
Maximum memory capacity: 192 GB
Number of memory slots: 4
Memory format: DIMM 288-pin
Integrated storage controller: PCI Express 5.0 x4 (1 x M.2 Key M), PCI Express 4.0 x4 (2 x M.2 Key M), SATA III-600 (4)
Integrated sound card: Yes
Audio channels: 7.1
Audio data width: 24-bit
Integrated LAN network card: Yes
LAN speed: 2.5 Gbps
Number and type of PCI Express 5.0 x16 slots: 1
Number and type of PCI Express 4.0 x4 slots: 1

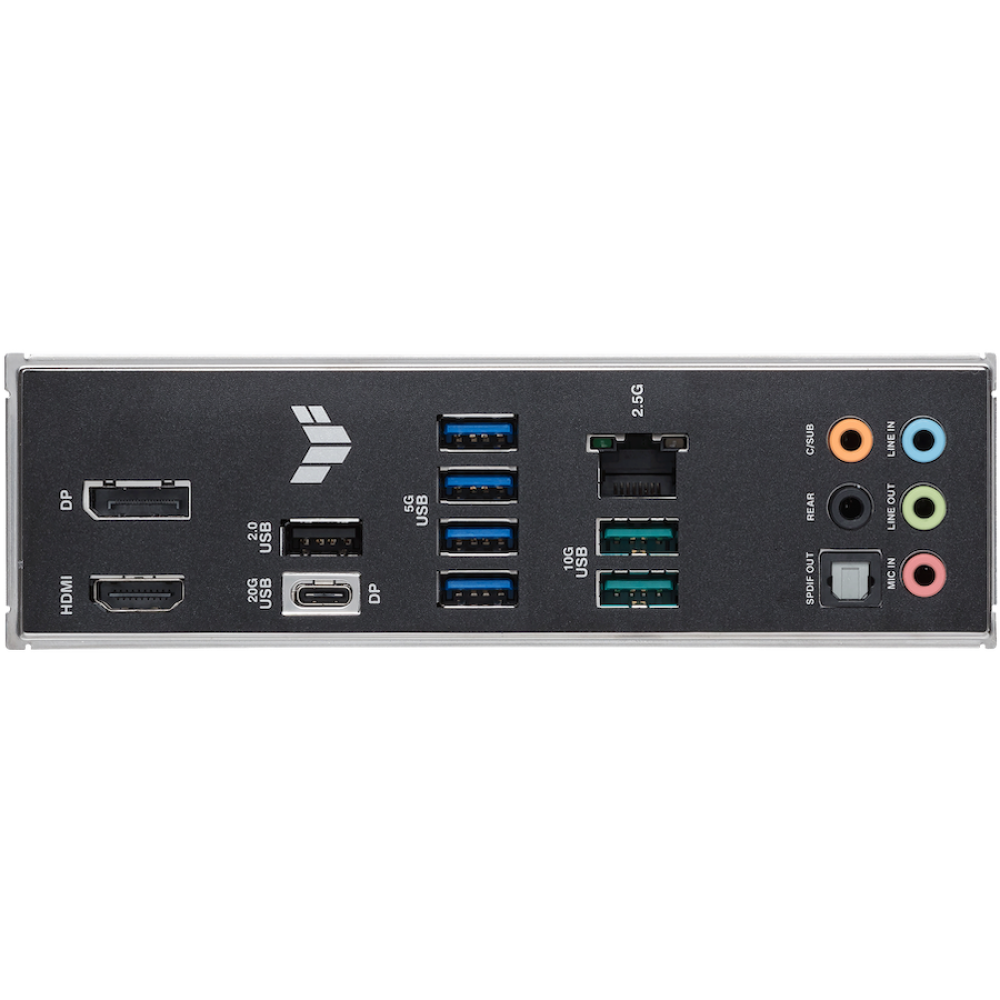

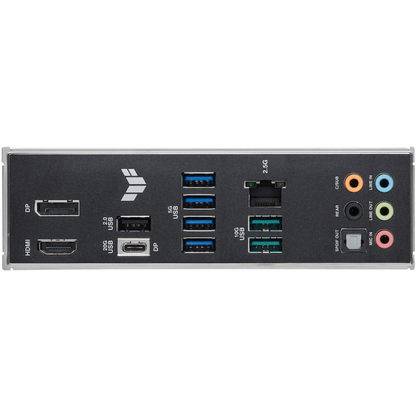

Number and type of USB 3.2 Gen 2 connectors: 1 (type C)
Number and type of USB 3.2 Gen 1 connectors: 2 (type A)
Number and type of USB 3.1 Gen 1 connectors: 4 (type A)
Number and type of USB 2.0 connectors: 1 (type A)
Number and type of DisplayPort connectors: 1
Number and type of HDMI connectors: 1 (Type A)
Number and type of LAN connectors: 1 (RJ-45)
Number and type of audio connectors: 5 (3.5-mm minijack)
Optical S/PDIF output: 1 (TOSLINK)
Motherboard format: Micro ATX
Height: 244 mm
Width: 244 mm
Weight: 0.982 kg
Features: Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS EZ Flash, ASUS CrashFree BIOS 3, PXE boot, RGB LED
Supported operating system: Microsoft Windows 11, Microsoft Windows 10 64-bit
Responsible entity: ASBIS Kypros Limited. 1, Iapetou Street Agios Athanasios 4101 Limassol, info@asbis.com.cy
SKU: 90MB1JW0-M0EAY0
EAN: 4711387785126
Brand: ASUS
Model: TUF GAMING B860M PLUS
Chipset: Intel B860
Processor socket: Socket 1851
Supported processor: Intel Core Ultra Processors
Memory type: DDR5 SDRAM
Memory speed: 8800 MT/s
Maximum memory capacity: 192 GB
Number of memory slots: 4
Memory format: DIMM 288-pin
Integrated storage controller: PCI Express 5.0 x4 (1 x M.2 Key M), PCI Express 4.0 x4 (2 x M.2 Key M), SATA III-600 (4)
Integrated sound card: Yes
Audio channels: 7.1
Audio data width: 24-bit
Integrated LAN network card: Yes
LAN speed: 2.5 Gbps
Number and type of PCI Express 5.0 x16 slots: 1
Number and type of PCI Express 4.0 x4 slots: 1
Number and type of USB 3.2 Gen 2 connectors: 1 (type C)
Number and type of USB 3.2 Gen 1 connectors: 2 (type A)
Number and type of USB 3.1 Gen 1 connectors: 4 (type A)
Number and type of USB 2.0 connectors: 1 (type A)
Number and type of DisplayPort connectors: 1
Number and type of HDMI connectors: 1 (Type A)
Number and type of LAN connectors: 1 (RJ-45)
Number and type of audio connectors: 5 (3.5-mm minijack)
Optical S/PDIF output: 1 (TOSLINK)
Motherboard format: Micro ATX
Height: 244 mm
Width: 244 mm
Weight: 0.982 kg
Features: Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS EZ Flash, ASUS CrashFree BIOS 3, PXE boot, RGB LED
Supported operating system: Microsoft Windows 11, Microsoft Windows 10 64-bit
Responsible entity: ASBIS Kypros Limited. 1, Iapetou Street Agios Athanasios 4101 Limassol, info@asbis.com.cy
SKU: 90MB1JW0-M0EAY0
EAN: 4711387785126
